MMBZ5V6ALT3G, MMBZ5V6ALT1G, Zener Diode

DATA SHEET www.onsemi.com Zener Diodes, 24 and 40 Watt Peak Power SOT *23 Dual Common Anode Zeners MMBZxxxALT1G Series, SZMMBZxxxALT1G Series.

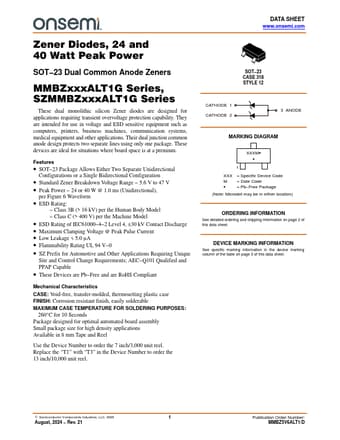

datasheet Preview Page 1 from Datasheet4u.com

MMBZ5V6ALT1G_ONSemiconductor.pdf

MMBZ5V6ALT3G Datasheet Preview — This datasheet PDF includes multiple part numbers: MMBZ5V6ALT3G, MMBZ5V6ALT1G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MMBZ5V6ALT3G, MMBZ5V6ALT1G

Manufacturer:

ON Semiconductor ↗

File Size:

162.23 KB

Description:

Zener Diode

Note:

This datasheet PDF includes multiple part numbers: MMBZ5V6ALT3G, MMBZ5V6ALT1G.
Please refer to the document for exact specifications by model.

Features

* SOT
* 23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration
* Standard Zener Breakdown Voltage Range
* 5.6 V to 47 V
* Peak Power
* 24 or 40 W @ 1.0 ms (Unidirectional), per Figure 6 Waveform

Applications

* requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common anode design protects two separate lines
