MMPQ2369 Datasheet - Motorola

MMPQ2369 Quad Switching Transistor

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad Switching Transistor NPN Silicon 1 16 2 15 3 14 4 13 5 12 6 11 7 10 89 MMPQ2369 Motorola Preferred Device 16 1 CASE 751B 05, STYLE 4 SO 16 MAXIMUM RATINGS Rating Symbol Value Unit Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous VCEO VCB VEB IC 15 40 4.5 500 Each Transistor Four Transistors Equal Power Vdc Vdc Vdc mAdc Total Power .

MMPQ2369-Motorola.pdf

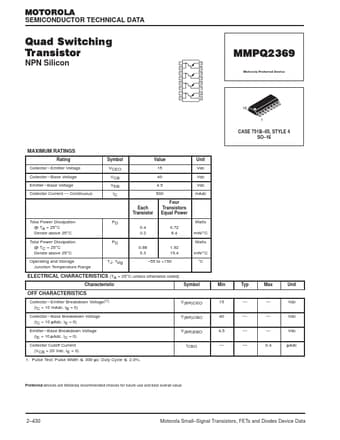

Preview of MMPQ2369 PDF
MMPQ2369 Datasheet Preview Page 2

Datasheet Details

Part number:

MMPQ2369

Manufacturer:

Motorola

File Size:

30.13 KB

Description:

Quad switching transistor.
