MMPQ3904 Datasheet - Motorola

MMPQ3904 Quad Amplifier/Switch Transistor

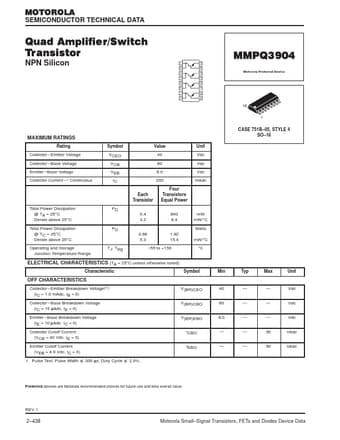

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad Amplifier/Switch Transistor NPN Silicon 1 16 2 15 3 14 4 13 5 12 6 11 7 10 89 MAXIMUM RATINGS Rating Symbol Value Unit Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous VCEO VCB VEB IC 40 60 6.0 200 Each Transistor Four Transistors Equal Power Vdc Vdc Vdc mAdc Total Power Dissipation @ TA = 25°C Derate above 25°C PD 0.4 3.2 800 mW 6.4 mW/°C Total.

MMPQ3904-Motorola.pdf

MMPQ3904 Datasheet Preview — Preview of MMPQ3904 PDF

MMPQ3904 Datasheet Preview Page 2

Datasheet Details

Part number:

MMPQ3904

Manufacturer:

Motorola

File Size:

31.33 KB

Description:

Quad amplifier/switch transistor.
