MOC3083 - 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output

This page provides the datasheet information for the MOC3083, a member of the MOC 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output family.

Datasheet Summary

Features

  • r>.
  • 05 ISSUE D Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the.

📥 Download Datasheet

Datasheet preview – MOC3083

Datasheet Details

Part number MOC3083
Manufacturer Motorola
File Size 291.90 KB
Description 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output
Datasheet download datasheet MOC3083 Datasheet
Additional preview pages of the MOC3083 datasheet.

📁 Similar Datasheet

  • MOC3083 - OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC (ETC)
  • MOC3083 - 6-Pin DIP Zero-C Cross Optoisolators Triac Driver (Fairchild Semiconductor)
  • MOC3083M - 6-Pin DIP Zero-C Cross Optoisolators Triac Driver (Fairchild Semiconductor)
  • MOC3083M - 6-Pin DIP Zero-Cross Triac Driver Optocoupler (ON Semiconductor)
  • MOC3080 - OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC (ETC)
  • MOC3080 - OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC (ETC)
  • MOC3081 - OPTICALLY COUPLED BILATERAL SWITCH LIGHT ACTIVATED ZERO VOLTAGE CROSSING TRIAC (ETC)
  • MOC3081 - 6-Pin DIP Zero-C Cross Optoisolators Triac Driver (Fairchild Semiconductor)
  • MOC3081M - 6-Pin DIP Zero-C Cross Optoisolators Triac Driver (Fairchild Semiconductor)
  • MOC3081M - 6-Pin DIP Zero-Cross Triac Driver Optocoupler (ON Semiconductor)
Other Datasheets by Motorola
  • MOC3081 - 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output
  • MOC3082 - 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output
  • MOC3010 - Infrared Emitting Diode
  • MOC3011 - Infrared Emitting Diode
  • MOC3012 - Infrared Emitting Diode
  • MOC3021 - 6-Pin DIP Random-Phase Optoisolator
  • MOC3022 - 6-Pin DIP Random-Phase Optoisolator
  • MOC3023 - 6-Pin DIP Random-Phase Optoisolator

Full PDF Text Transcription

Click to expand full text

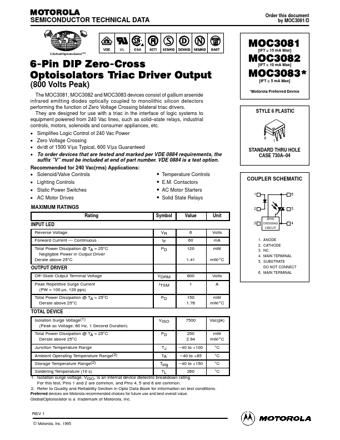

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MOC3081/D GlobalOptoisolator™ 6-Pin DIP Zero-Cross Optoisolators Triac Driver Output (800 Volts Peak) The MOC3081, MOC3082 and MOC3083 devices consist of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the function of Zero Voltage Crossing bilateral triac drivers. They are designed for use with a triac in the interface of logic systems to equipment powered from 240 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc.
