MOC3082M - 6-Pin DIP Zero-C Cross Optoisolators Triac Driver

This page provides the datasheet information for the MOC3082M, a member of the MOC3081M 6-Pin DIP Zero-C Cross Optoisolators Triac Driver family.

Datasheet Summary

Description

The MOC3081M, MOC3082M and MOC3083M devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.

Features

  • Underwriters Laboratories (UL) recognized - file #E90700, Volume 2 VDE recognized - file #102497 - add option V (e. g. , MOC3083VM) Simplifies logic control of 240 VAC power Zero voltage crossing dv/dt of 1500 V/µs typical, 600 V/µs guaranteed Compatible with Fairchild’s FKPF12N80 discrete power triac.

📥 Download Datasheet

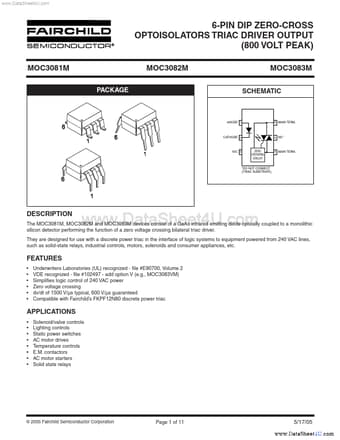

Datasheet preview – MOC3082M

Datasheet Details

Part number MOC3082M
Manufacturer Fairchild Semiconductor
File Size 583.40 KB
Description 6-Pin DIP Zero-C Cross Optoisolators Triac Driver
Datasheet download datasheet MOC3082M Datasheet
