MOCD211 DUAL CHANNEL SMALL OUTLINE OPTOISOLATOR TRANSISTOR

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MOCD211/D Dual Channel Small Outline Optoisolators Transistor Output The MOCD211 device consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor detectors, in a surface mountable, small outline, plastic package. It is ideally suited for high density applications and eliminates the need for through the board mounting. Dual Channel Coupler .

MOCD211 Datasheet (107.73 KB)

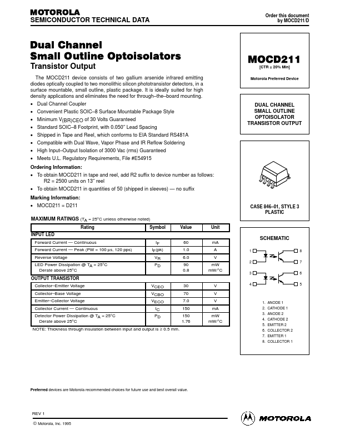

MOCD211 Datasheet Preview — Preview of MOCD211 PDF

Datasheet Details

Part number:

MOCD211

Manufacturer:

Motorola

File Size:

107.73 KB

Description:

Dual channel small outline optoisolator transistor.
