MOCD217 Datasheet - Motorola

MOCD217 DUAL CHANNEL SMALL OUTLINE OPTOISOLATOR TRANSISTOR OUTPUT

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MOCD217/D Dual Channel Small Outline Optoisolators Transistor Output (Low Input Current) The MOCD217 device consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor detectors, in a surface mountable, small outline, plastic package. It is ideally suited for high density applications and eliminates the need for through the board mounting. Dual Chann.

MOCD217 Datasheet (110.00 KB)

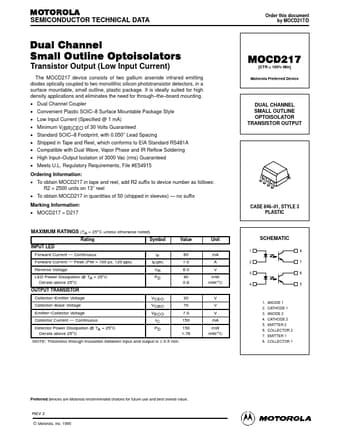

Preview of MOCD217 PDF

Datasheet Details

Part number:

MOCD217

Manufacturer:

Motorola

File Size:

110.00 KB

Description:

Dual channel small outline optoisolator transistor output.
