MPC56x - Including Peripheral Pin Multiplexing with Flash and Code Compression Options

MPC56x Description

MOTOROLA MPC561PB/D Rev.1, December 2001 SEMICONDUCTOR PRODUCT BRIEF MPC561/MPC562 MPC563/MPC564 Product Brief MPC561/MPC562 / MPC563/MPC564 RISC.

MPC56x Features

* The MPC561/MPC562 / MPC563/MPC564 are members of the Motorola MPC500 RISC Microcontroller family. As shown in the block diagram, they are composed of:
* High performance CPU system
* High performance core
* Single issue integer core
* Compatible with PowerPC instructi

MPC56x Applications

* 512 Kbytes flash (available on the MPC563/MPC564 only)
* Single array
* Page mode read
* Block (64 Kbytes) erasable
* External 4.75- to 5.25-V VFLASH program, erase, and read power supply JTAG 512 Kbytes Flash (on MPC563/ MPC564 on

📥 Download Datasheet

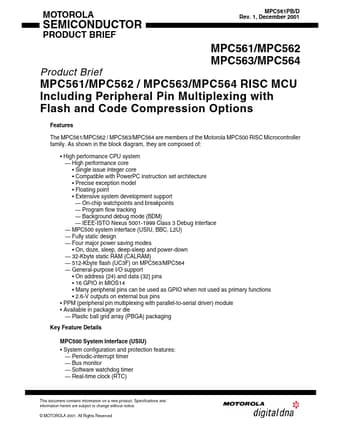

Preview of MPC56x PDF
