MPF4118A, MPF4117 Datasheet - Motorola

MPF4118A JFET DC AMPLIFIER TRANSISTOR

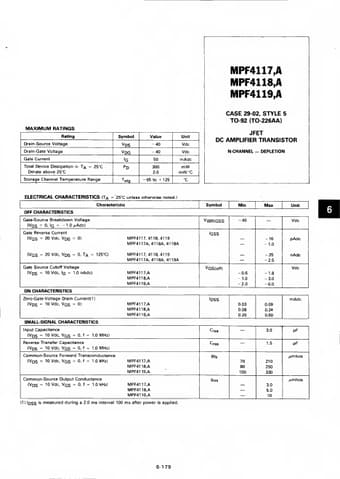

MPF4117,A MPF4118,A MPF4119.A MAXIMUM RATINGS Rating Drain-Source Voltage Drain-Gate Voltage Gate Current Total Device Dissipation (a TA = 25°C Derate above 25°C Storage Channel Temperature Range Symbol vDs vDg lG PD T stq Value -40 -40 50 300 2.0 -65 to +125 Unit Vdc Vdc mAdc mW mW/°C °C CASE 29-02, STYLE 5 TO-92 (TO-226AA) JFET DC AMPLIFIER TRANSISTOR N-CHANNEL DEPLETION ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted.) Characteristic OFF CHARACTERISTICS Gate-Sou.

MPF4117-Motorola.pdf

MPF4118A Datasheet Preview — This datasheet PDF includes multiple part numbers: MPF4118A, MPF4117. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MPF4118A, MPF4117

Manufacturer:

Motorola

File Size:

50.47 KB

Description:

Jfet dc amplifier transistor.

Note:

This datasheet PDF includes multiple part numbers: MPF4118A, MPF4117.
Please refer to the document for exact specifications by model.
