MPX4105 OPERATING OVERVIEW INTEGRATED PRESSURE SENSOR

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MPX4105/D MPX4105 Integrated Silicon Pressure Sensor Manifold Absolute Pressure Sensor On-Chip Signal Conditioned, Temperature Compensated and Calibrated The Motorola MPX4105 series Manifold Absolute Pressure (MAP) sensor for engine control is designed to sense absolute air pressure within the intake manifold. This measurement can be used to compute the amount of fuel required for each cylinder. The small form factor and high reliab.

MPX4105 Features

* 1.7% Maximum Error over 0° to 85°C

* Specifically Designed for Intake Manifold Absolute Pressure Sensing in Engine Control Systems

* Ideally Suited for Microprocessor Interfacing

* Patented Silicon Shear Stress Strain Gauge

* Temperature Compensated over

MPX4105 Datasheet (98.39 KB)

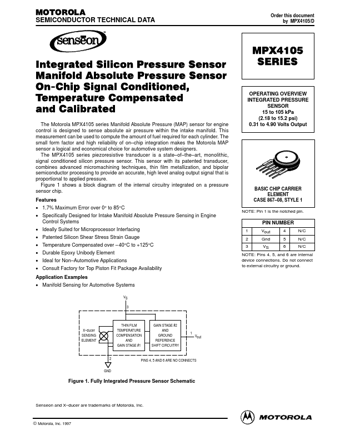

MPX4105 Datasheet Preview — Preview of MPX4105 PDF

Datasheet Details

Part number:

MPX4105

Manufacturer:

Motorola

File Size:

98.39 KB

Description:

Operating overview integrated pressure sensor.
