MPX200 - Uncompensated Silicon Pressure Sensors

MPX200 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MPX200/D 200 kPa Uncompensated Silicon Pressure Sensors The MPX200 series device is a .

MPX200 Features

* Low Cost
* Patented Silicon Shear Stress Strain Gauge
* ± 0.25% (Max) Linearity
* Full Scale Span 60 mV (Typ)
* Easy to Use Chip Carrier Package Options
* Ratiometric to Supply Voltage

MPX200 Applications

* Note AN840. 70 60 50 OUTPUT (mVdc) OUTPUT (mVdc) ACTUAL 40 30 20 10 0 0 PRESSURE (kPA) THEORETICAL OFFSET (VOFF) MAX POP SPAN (VFSS) LINEARITY 70 60 50 40 30 20 10 0 PSI kPa 0 OFFSET (TYP) 4.0 8.0 12 16 20 24 28 30 20 40 60 80 100 120 140 160 180 200 PRESSURE DIFFERENTIAL VS = 3.0 Vdc P1 > P2

📥 Download Datasheet

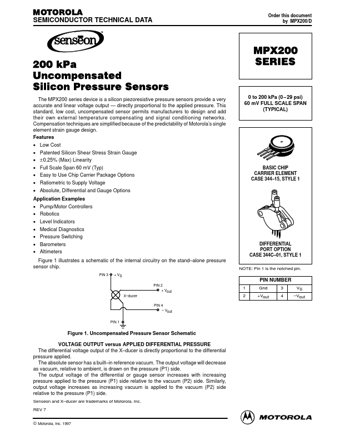

Preview of MPX200 PDF
