MPX2002 - All-in-One Flyback Controller

Product Overview

MPS

MPX2002 All-in-One Flyback Controller by MPS - Datasheet Preview — Datasheet preview – MPX2002

Datasheet Details

Part number	MPX2002
Manufacturer	MPS
File Size	1.51 MB
Description	All-in-One Flyback Controller
Datasheet	MPX2002 Datasheet

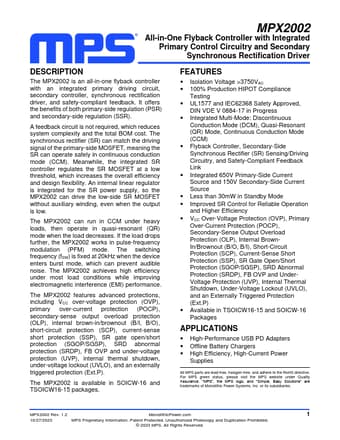

Additional preview pages of the MPX2002 datasheet.

Product details

Description

The MPX2002 is an all-in-one flyback controller with an integrated primary driving circuit, secondary controller, synchronous rectification driver, and safety-compliant feedback.

Features

advanced protections, including VCC over-voltage protection (OVP), primary over-current protection (POCP), secondary-sense output overload protection (OLP), internal brown-in/brownout (B/I, B/O), short-circuit protection (SCP), current-sense short protection (SSP), SR gate open/short protection (SGOP/SGSP), SRD abnormal protection (SRDP), FB OVP and under-voltage protection (UVP), internal thermal shutdown, under-voltage lockout (UVLO), and an externally triggered protection (Ext. P). The MPX2002.
