MPX2001 - All-in-One Flyback Controller

MPX2001 Description

The Future of Analog IC Technology .
The MPX2001 is an all-in-one flyback controller solution.

MPX2001 Features

* advanced protections, including primary-sense output over-voltage protection (OVP), primary over-current protection (POCP), real secondary-sense output overload protection (OLP), internal/external brown-in/brown-out (B/O, B/I), short-circuit protection (SCP), current-sensing short protection (SSP),

MPX2001 Applications

* AC/DC Adapters
* Power Supply for Appliances
* Offline Battery Chargers
* High Efficiency, High-Current Power Supplies, Etc. All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under quality assurance. “MPS

📥 Download Datasheet

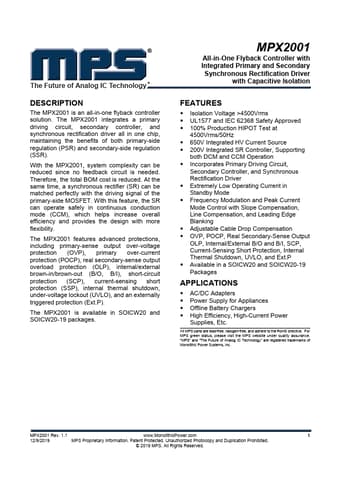

Preview of MPX2001 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPX2001
Manufacturer
MPS
File Size
1.28 MB
Datasheet
MPX2001-MPS.pdf
Description
All-in-One Flyback Controller
