MPX2100 Datasheet - Motorola

MPX2100 (MPX2100 / MPX2101) 0 to 100 kPa (0 to 14.5 psi) 40 mV FULL SCALE SPAN (TYPICAL)

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MPX2100/D 100 kPa On-Chip Temperature Compensated & Calibrated Silicon Pressure Sensors MPX2100 MPX2101 SERIES Motorola Preferred Device The MPX2100 and MPX2101 series device is a silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin film resi.

MPX2100 Features

* Temperature Compensated Over 0°C to + 85°C

* Unique Silicon Shear Stress Strain Gauge

* Easy to Use Chip Carrier Package Options

* Available in Absolute, Differential and Gauge Configurations

* Ratiometric to Supply Voltage

* ± 0.25% Linearity (MPX21

MPX2100 Datasheet (194.62 KB)

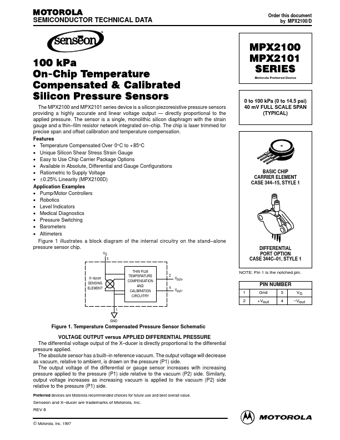

MPX2100 Datasheet Preview — Preview of MPX2100 PDF

Datasheet Details

Part number:

MPX2100

Manufacturer:

Motorola

File Size:

194.62 KB

Description:

(mpx2100 / mpx2101) 0 to 100 kpa (0 to 14.5 psi) 40 mv full scale span (typical).
