MPX2100ASX 100kPa On-Chip Temperature Compensated and Calibrated Silicon Pressure Sensors

Freescale Semiconductor + 100 kPa On-Chip Temperature Compensated and Calibrated Silicon Pressure Sensors The MPX2100 series devices silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calibration an temperature compensation. Fea.

MPX2100ASX Features

* Temperature Compensated Over 0°C to +85°C

* Available in Absolute, Differential and Gauge Configurations

* Easy to Use Chip Carrier Package Options

* Ratiometric to Supply Voltage

* ±0.25% Linearity (MPX2100D Series) Pressure MPX2100 Rev 10, 10/2008 MPX2100

MPX2100-NXP.pdf

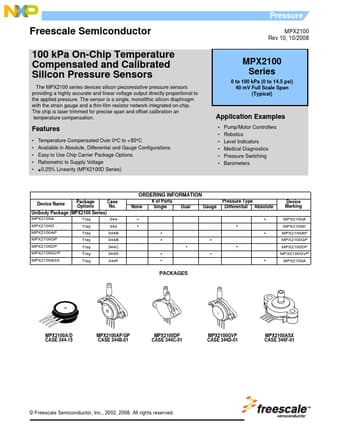

MPX2100ASX Datasheet Preview — This datasheet PDF includes multiple part numbers: MPX2100ASX, MPX2100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MPX2100ASX, MPX2100

Manufacturer:

NXP ↗

File Size:

180.09 KB

Description:

100kpa on-chip temperature compensated and calibrated silicon pressure sensors.

Note:

This datasheet PDF includes multiple part numbers: MPX2100ASX, MPX2100.
Please refer to the document for exact specifications by model.
