MV104 Datasheet - Motorola

MV104-Motorola.pdf

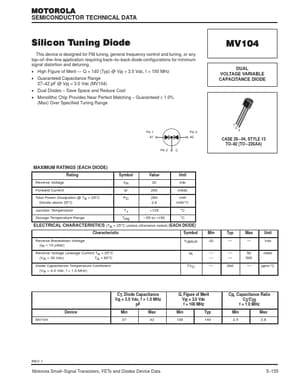

Preview of MV104 PDF
MV104 Datasheet Preview Page 2

Datasheet Details

Part number:

MV104

Manufacturer:

Motorola

File Size:

30.92 KB

Description:

Silicon tuning diode.

MV104, Silicon Tuning Diode

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Silicon Tuning Diode This device is designed for FM tuning, general frequency control and tuning, or any top of the line application requiring back to back diode configurations for minimum signal distortion and detuning.

High Figure of Merit  Q = 140 (Typ) @ VR = 3.0 Vdc, f = 100 MHz Guaranteed Capacitance Range 37 42 pF @ VR = 3.0 Vdc (MV104) Dual Diodes Save Space and
