MV7404T1 Datasheet - Motorola

MV7404T1 Silicon Hyper-Abrupt Tuning Diode

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MV7404T1/D Silicon Hyper-Abrupt Tuning Diode This silicon tuning diode is designed for high capacitance and a tuning ratio of greater than 10 times over a bias range of 2.0 to 10 volts. It provides tuning over a broad frequency range from the AM broadcast band to 100 MHz. The device is housed in the SOT-223 package which is designed for medium power surface mount applications. High Capacitance Large Capacitance C.

MV7404T1 Datasheet (123.35 KB)

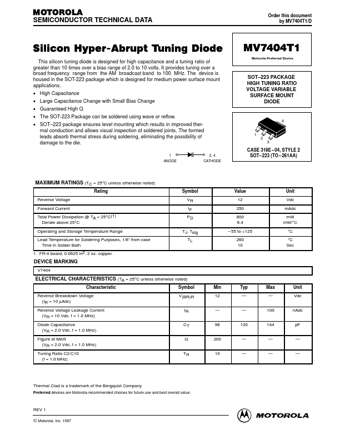

Preview of MV7404T1 PDF
MV7404T1 Datasheet Preview Page 2 MV7404T1 Datasheet Preview Page 3

Datasheet Details

Part number:

MV7404T1

Manufacturer:

Motorola

File Size:

123.35 KB

Description:

Silicon hyper-abrupt tuning diode.
