SN74LS221, SN74LS221D, DUAL MONOSTABLE MULTIVIBRATORS

DUAL MONOSTABLE MULTIVIBRATORS WITH SCHMITT-TRIGGER INPUTS Each multivibrator of the LS221 .

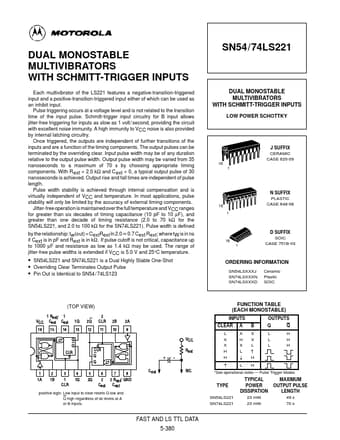

datasheet Preview Page 1 from Datasheet4u.com

SN74LS221D_MotorolaInc.pdf

SN74LS221 Datasheet Preview — This datasheet PDF includes multiple part numbers: SN74LS221, SN74LS221D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SN74LS221, SN74LS221D

Manufacturer:

Motorola

File Size:

193.88 KB

Description:

DUAL MONOSTABLE MULTIVIBRATORS

Note:

This datasheet PDF includes multiple part numbers: SN74LS221, SN74LS221D.
Please refer to the document for exact specifications by model.

Features

* a negative-transition-triggered input and a positive-transition-triggered input either of which can be used as an inhibit input. Pulse triggering occurs at a voltage level and is not related to the transition time of the input pulse. Schmitt-trigger input circuitry for B input allows jitter-free tri

Applications

* pulse stability will only be limited by the accuracy of external timing components. Jitter-free operation is maintained over the full temperature and VCC ranges for greater than six decades of timing capacitance (10 pF to 10 µF), and greater than one decade of timing resistance (2.0 to 70 kΩ for th
