SN74LS241, SN74LS240DW Datasheet - Motorola

SN74LS241 OCTAL BUFFER/LINE DRIVER

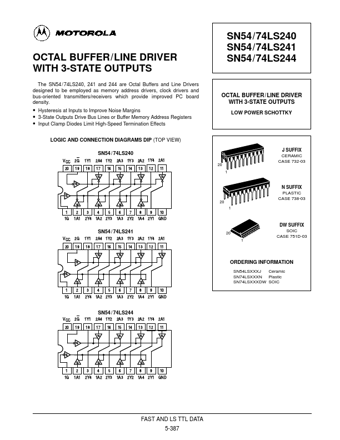

OCTAL BUFFER/LINE DRIVER WITH 3-STATE OUTPUTS The SN54 / 74LS240, 241 and 244 are Octal Buffers and Line Drivers designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC board density. Hysteresis at Inputs to Improve Noise Margins 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers Input Clamp Diodes Limit High-Speed Termination Effects LOGIC AND CONNECTION DIAGRAMS DIP (TOP VIE.

SN74LS240DW_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: SN74LS241, SN74LS240DW. Please refer to the document for exact specifications by model.
