SN74LS221, Dual Monostable Multivibrators

SN74LS221 Dual Monostable Multivibrators with Schmitt-Trigger Inputs Each multivibrator of the LS221 .

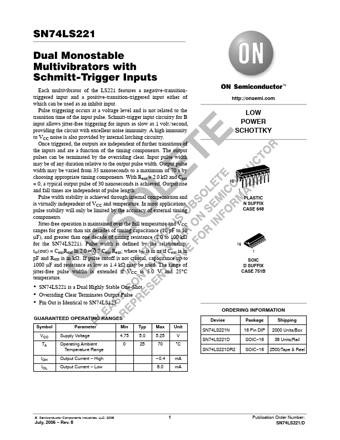

datasheet Preview Page 1 from Datasheet4u.com

SN74LS221_ONSemiconductor.pdf

SN74LS221 Datasheet Preview — Preview of SN74LS221 PDF

Datasheet Details

Part number:

SN74LS221

Manufacturer:

ON Semiconductor ↗

File Size:

195.33 KB

Description:

Dual Monostable Multivibrators

Features

* a negative-transitiontriggered input and a positive-transition-triggered input either of which can be used as an inhibit input. Pulse triggering occurs at a voltage level and is not related to the transition time of the input pulse. Schmitt-trigger input circuitry for B input allows jitter-free trig

Applications

* pulse stability will only be limited by the accuracy of external timing components. Jitter-free operation is maintained over the full temperature and VCC ranges for greater than six decades of timing capacitance (10 pF to 10 µF), and greater than one decade of timing resistance (2.0 to 100 kΩ for t
