SN74LS245, SN74LS245DW Datasheet - Motorola

SN74LS245 OCTAL BUS TRANSCEIVER

OCTAL BUS TRANSCEIVER The SN54 / 74LS245 is an Octal Bus Transmitter/Receiver designed for 8-line asynchronous 2-way data communication between data buses. Direction Input (DR) controls transmission of Data from bus A to bus B or bus B to bus A depending upon its logic level. The Enable input (E) can be used to isolate the buses. Hysteresis Inputs to Improve Noise Immunity 2-Way Asynchronous Data Bus Communication Input Diodes Limit High-Speed Termination Effects

SN74LS245DW_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: SN74LS245, SN74LS245DW. Please refer to the document for exact specifications by model.

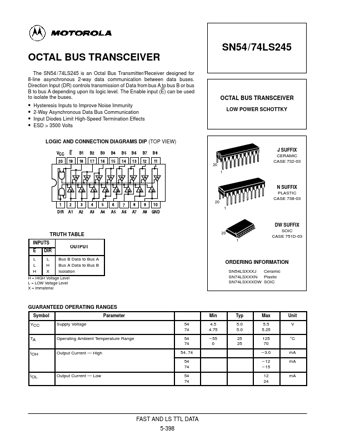

SN74LS245 Datasheet Preview Page 2 SN74LS245 Datasheet Preview Page 3

Datasheet Details

Part number:

SN74LS245, SN74LS245DW

Manufacturer:

Motorola

File Size:

155.11 KB

Description:

Octal bus transceiver.

Note:

This datasheet PDF includes multiple part numbers: SN74LS245, SN74LS245DW.
Please refer to the document for exact specifications by model.
