VN0610LL Datasheet - Motorola

VN0610LL TMOS FET Transistor

MOTOROLA SEMICONDUCTOR TECHNICAL DATA TMOS FET Transistor N Channel Enhancement 3DRAIN VN0610LL 2 GATE MAXIMUM RATINGS ® 1 SOURCE Rating Symbol Value Unit Drain Source Voltage Drain Gate Voltage (RGS = 1 MΩ) Gate Source Voltage Continuous Non repetitive (tp ≤ 50 µs) Drain Current Continuous Pulsed Total Power Dissipation @ TA = 25°C Derate above 25°C VDSS VDGR VGS VGSM ID IDM PD 60 60 ± 20 ± 40 190 1000 400 3..

VN0610LL-Motorola.pdf

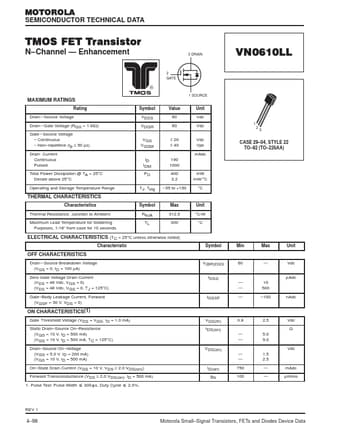

Preview of VN0610LL PDF
VN0610LL Datasheet Preview Page 2 VN0610LL Datasheet Preview Page 3

Datasheet Details

Part number:

VN0610LL

Manufacturer:

Motorola

File Size:

50.22 KB

Description:

Tmos fet transistor.
