2W01, 2W005 Silicon Bridge Rectifier

2W01 Description

Silicon Bridge Rectifier .

2W01 Features

*   Surge overload rating 60 amperes peak
*   Ideal for printed circuit board
*   Reliable low cost construction utilizing molded plastic technique results in expensive product Specifications: Lead : Sliver plated copper lead Reverse Voltage : 50 to 1,000Volts Forward C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2W01, 2W005. Please refer to the document for exact specifications by model.

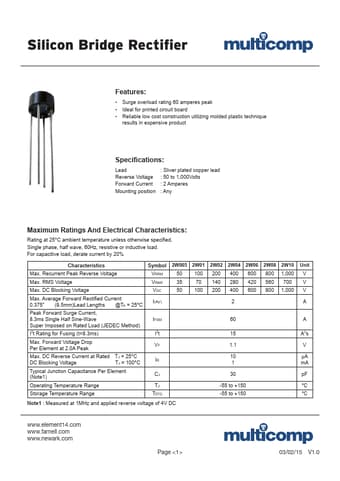

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2W01, 2W005
Manufacturer
Multicomp
File Size
401.86 KB
Datasheet
2W005-Multicomp.pdf
Description
Silicon Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: 2W01, 2W005.
Please refer to the document for exact specifications by model.
