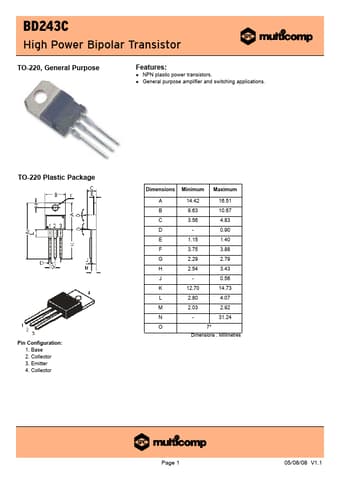

Part number:
BD243C
Manufacturer:
Multicomp
File Size:
131.41 KB
Description:
High power bipolar transistor.
Datasheet Details
BD243C Features
* NPN plastic power transistors.
* General purpose amplifier and switching applications. TO-220 Plastic Package Pin Configuration: 1. Base 2. Collector 3. Emitter 4. Collector Dimensions Minimum Maximum A 14.42 16.51 B 9.63 10.67 C 3.56 4.83 D - 0.90 E 1.15 1.40 F 3.75 3.8
Datasheet Details
BD243C
Multicomp
131.41 KB
High power bipolar transistor.
