GBPC3501, GBPC15005 - Bridge Rectifier

GBPC3501 Description

Bridge Rectifier GBPC Series GBPC .

GBPC3501 Features

* Plastic material
* Integrally moulded heatsink provide very low thermal resistance for maximum heat dissipation
* Surge overload ratings from 300 to 400 A
* Terminals solderable per MIL-STD-202, method 208 (for wire type)
* Typical IR less than 0.2 µA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC3501, GBPC15005. Please refer to the document for exact specifications by model.

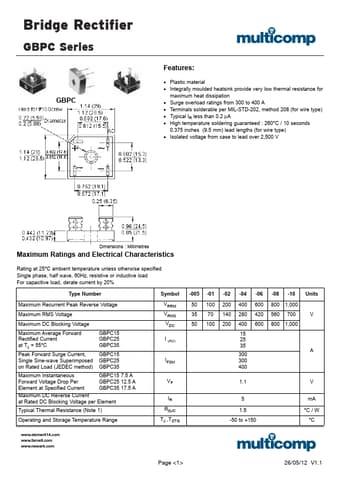

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBPC3501, GBPC15005
Manufacturer
Multicomp
File Size
177.46 KB
Datasheet
GBPC15005-Multicomp.pdf
Description
Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: GBPC3501, GBPC15005.
Please refer to the document for exact specifications by model.
