MBR1545CT - SCHOTTKY RECTIFIER

Datasheet Summary

Description

Diode, Schottky, 15A, 100V Diode, Schottky, 15A, 45V Diode, Schottky, 15A, 60V Part Number MBR15100CT MBR1545CT MBR1560CT T, Pulse Duration (seconds) Page 23/07/08 V1.1 MBR15xCT Notes: International Sales Offices: AUSTRALIA Farnell Tel No: ++61 1300 361 005 Fax No: ++61 1300 361

Features

  • Plastic material.
  • Metal silicon rectifier, majority carrier conduction.
  • Low power loss, high efficiency.
  • High current capability, low forward voltage drop.
  • High surge capability.
  • For use in low voltage, high frequency inverters, free wheeling, and polarity protection.

📥 Download Datasheet

Datasheet preview – MBR1545CT

Datasheet Details

Part number MBR1545CT
Manufacturer Multicomp
File Size 146.90 KB
Description SCHOTTKY RECTIFIER
Datasheet download datasheet MBR1545CT Datasheet
Additional preview pages of the MBR1545CT datasheet.

📁 Similar Datasheet

  • MBR1545CT - SCHOTTKY RECTIFIER (International Rectifier)
  • MBR1545CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • MBR1545CT - Schottky Barrier Rectifier (GOOD-ARK)
  • MBR1545CT - SCHOTTKY RECTIFIER (Sangdest Microelectronics)
  • MBR1545CT - Schottky Rectifiers (Fairchild Semiconductor)
  • MBR1545CT - SCHOTTKY RECTIFIER (General Semiconductor)
  • MBR1545CT - 15A SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • MBR1545CT - SWITCHMODE Power Rectifiers (Motorola)
  • MBR1545CT - Schottky Barrier Rectifier (MCC)
  • MBR1545CT - Dual Common Cathode Schottky Rectifier (Taiwan Semiconductor Company)
Other Datasheets by Multicomp

Full PDF Text Transcription

Click to expand full text

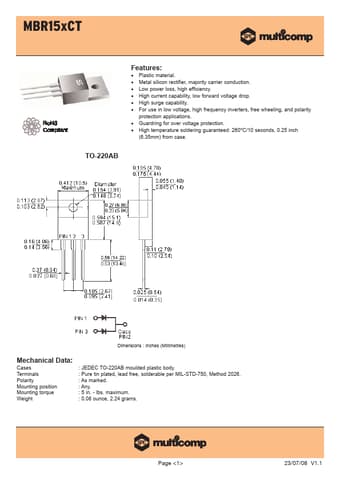

MBR15xCT Features: • Plastic material. • Metal silicon rectifier, majority carrier conduction. • Low power loss, high efficiency. • High current capability, low forward voltage drop. • High surge capability. • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications. • Guardring for over voltage protection. • High temperature soldering guaranteed: 260°C/10 seconds, 0.25 inch (6.35mm) from case. TO-220AB Dimensions : Inches (Millimetres) Mechanical Data: Cases Terminals Polarity Mounting position Mounting torque Weight : JEDEC TO-220AB moulded plastic body. : Pure tin plated, lead free, solderable per MIL-STD-750, Method 2026. : As marked. : Any. : 5 in. - lbs. maximum. : 0.08 ounce, 2.24 grams. Page <1> 23/07/08 V1.
