MBR16100 - Schottky Barrier Rectifiers

Datasheet Summary

Features

  • UL Recognized file # E-326243.
  • Plastic material used carries underwriters laboratory classifications 94V-0.
  • Metal silicon junction, majority carrier conduction.
  • Low power loss, high efficiency.
  • High current capability, low forward voltage drop.
  • High surge capability.
  • For use in low voltage, high frequency inverters, free wheeling, and polarity protection.

📥 Download Datasheet

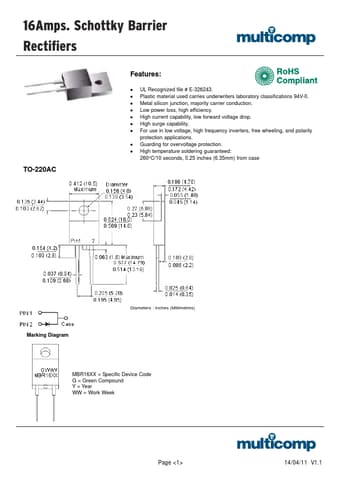

Datasheet preview – MBR16100

Datasheet Details

Part number MBR16100
Manufacturer Multicomp
File Size 288.41 KB
Description Schottky Barrier Rectifiers
Datasheet download datasheet MBR16100 Datasheet
Additional preview pages of the MBR16100 datasheet.

📁 Similar Datasheet

  • MBR16100 - Schottky Barrier Rectifier (GME)
  • MBR16100 - Schottky Barrier Rectifier (Fagor)
  • MBR16100 - Schottky Barrier Rectifier (Taiwan Semiconductor)
  • MBR16100 - SCHOTTKY BARRIER RECTIFIER (GALAXY ELECTRICAL)
  • MBR16100 - Schottky Barrier Rectifier (LGE)
  • MBR16100 - 16.0AMP. SCHOTTKY BARRIER RECTIFIERS (YFD)
  • MBR16100B - D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER (GOOD ELECTRONIC)
  • MBR16100CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • MBR16100CT - Schottky Barrier Recitifier (HY)
  • MBR16100CT - SCHOTTKY BARRIER RECTIFIER DIODE (EIC)
Other Datasheets by Multicomp

Full PDF Text Transcription

Click to expand full text
16Amps. Schottky Barrier Rectifiers TO-220AC Features: • UL Recognized file # E-326243. • Plastic material used carries underwriters laboratory classifications 94V-0. • Metal silicon junction, majority carrier conduction. • Low power loss, high efficiency. • High current capability, low forward voltage drop. • High surge capability. • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications. • Guarding for overvoltage protection. • High temperature soldering guaranteed: 260°C/10 seconds, 0.25 inches (6.35mm) from case Marking Diagram Diameters : Inches (Millimetres) MBR16XX = Specific Device Code G = Green Compound Y = Year WW = Work Week Page <1> 14/04/11 V1.1 16Amps.
