MBR16100B - D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER

This page provides the datasheet information for the MBR16100B, a member of the MBR1620B D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER family.

Datasheet Summary

Features

0.421(10.69) 0.380(9.65) 0.625(15.88) 0.575(14.60) pin 1 0.110(2.79) 0.090(2.29) 0.040(1.01) 0.020(0.51) 0.190(4.83) 0.172(4.37) 0.055(1.40) 0.045(1.14) 0.055(1.40) 0.045(1.14) 0.364(9.25) 0.325(8.25) 0.110(2.79) 0.090(2.29) 0.025(0.64) 0.012(0.30)) 0.115(2.92) 0.080(2.03).
Flame Retardant Epoxy Molding Compound.
Metal silicon junction, majority carrier conduction.
Low power loss, High efficiency, High current capability.
Guardring for overvoltage protection.
E.

Datasheet Details

Part number	MBR16100B
Manufacturer	GOOD ELECTRONIC
File Size	77.10 KB
Description	D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER
Datasheet	MBR16100B Datasheet
Additional preview pages of the MBR16100B datasheet.

📁 Similar Datasheet

MBR16100 - Schottky Barrier Rectifier (GME)

MBR16100 - Schottky Barrier Rectifiers (Multicomp)

MBR16100 - Schottky Barrier Rectifier (Fagor)

MBR16100 - Schottky Barrier Rectifier (Taiwan Semiconductor)

MBR16100 - SCHOTTKY BARRIER RECTIFIER (GALAXY ELECTRICAL)

MBR16100 - Schottky Barrier Rectifier (LGE)

MBR16100 - 16.0AMP. SCHOTTKY BARRIER RECTIFIERS (YFD)

MBR16100CT - Schottky Barrier Rectifier (Inchange Semiconductor)

MBR16100CT - Schottky Barrier Recitifier (HY)

MBR16100CT - SCHOTTKY BARRIER RECTIFIER DIODE (EIC)

Full PDF Text Transcription

Click to expand full text

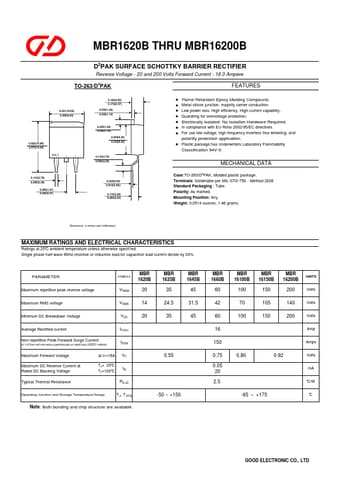

MBR1620B THRU MBR16200B D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 and 200 Volts Forward Current - 16.0 Ampere TO-263/D2PAK FEATURES 0.421(10.69) 0.380(9.65) 0.625(15.88) 0.575(14.60) pin 1 0.110(2.79) 0.090(2.29) 0.040(1.01) 0.020(0.51) 0.190(4.83) 0.172(4.37) 0.055(1.40) 0.045(1.14) 0.055(1.40) 0.045(1.14) 0.364(9.25) 0.325(8.25) 0.110(2.79) 0.090(2.29) 0.025(0.64) 0.012(0.30)) 0.115(2.92) 0.080(2.03) ◆ Flame Retardant Epoxy Molding Compound. ◆ Metal silicon junction, majority carrier conduction. ◆ Low power loss, High efficiency, High current capability. ◆ Guardring for overvoltage protection. ◆ Electrically Isolated. No Isolation Hardware Required. ◆ In compliance with EU Rohs 2002/95/EC directives.
