MBR16100FCT - (MBR1620FCT - MBR16100FCT) Schottky Rectifier

Datasheet Summary

Features

  • es High Surge Capability Low Forward Voltage Drop Marking : type number Low Power Loss, High Efficiency Case Material: Molded Plastic. Classification Rating 94V-0 UL Flammability Maximum Ratings.
  • Operating Temperature: -50℃ to +125℃ Storage Temperature: -50℃ to +125℃ Maximum Thermal Resistance: RθJC = 2.0℃/W MCC Part Number Maximum Recurrent Peak Reverse Voltage 20V 30V 40V 50V 60V 80V 100V Maximum RMS Voltage 14V 21V 28V 35V 42V 56V 70V Maximum DC Blocking Volta.

📥 Download Datasheet

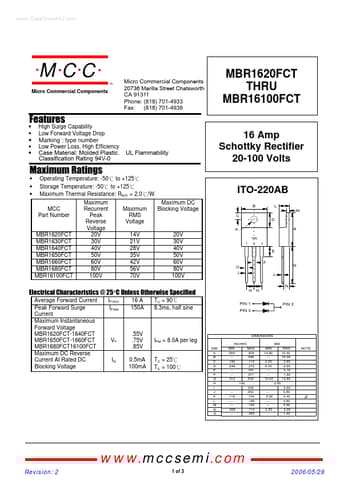

Datasheet preview – MBR16100FCT

Datasheet Details

Part number MBR16100FCT
Manufacturer MCC
File Size 783.90 KB
Description (MBR1620FCT - MBR16100FCT) Schottky Rectifier
Datasheet download datasheet MBR16100FCT Datasheet
Additional preview pages of the MBR16100FCT datasheet.

📁 Similar Datasheet

  • MBR16100FCT - Schottky Barrier Rectifier (Formosa MS)
  • MBR16100FCT - 16 AMPERE SCHOTTKY BARRIER RECTIFIERS (YS)
  • MBR16100F - 16 AMPERS ISOLATION SCHOTTKY BARRIER RECTIFIER (GOOD ELECTRONIC)
  • MBR16100 - Schottky Barrier Rectifier (GME)
  • MBR16100 - Schottky Barrier Rectifiers (Multicomp)
  • MBR16100 - Schottky Barrier Rectifier (Fagor)
  • MBR16100 - Schottky Barrier Rectifier (Taiwan Semiconductor)
  • MBR16100 - SCHOTTKY BARRIER RECTIFIER (GALAXY ELECTRICAL)
  • MBR16100 - Schottky Barrier Rectifier (LGE)
  • MBR16100 - 16.0AMP. SCHOTTKY BARRIER RECTIFIERS (YFD)
Other Datasheets by MCC
  • MBR1620CT - Schott ky Barrier Rectifier
  • MBR1620FCT - (MBR1620FCT - MBR16100FCT) Schottky Rectifier
  • MBR1630 - Schottky Barrier Rectifier
  • MBR1630CT - Schott ky Barrier Rectifier
  • MBR1630FCT - (MBR1620FCT - MBR16100FCT) Schottky Rectifier
  • MBR1635 - Schottky Barrier Rectifier
  • MBR1635CT - Schott ky Barrier Rectifier
  • MBR1640 - Schottky Barrier Rectifier

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# MBR1620FCT THRU MBR16100FCT 16 Amp Schottky Rectifier 20-100 Volts ITO-220AB • • • • • Features High Surge Capability Low Forward Voltage Drop Marking : type number Low Power Loss, High Efficiency Case Material: Molded Plastic. Classification Rating 94V-0 UL Flammability Maximum Ratings • • • Operating Temperature: -50℃ to +125℃ Storage Temperature: -50℃ to +125℃ Maximum Thermal Resistance: RθJC = 2.
