MBR16150B - D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER

This page provides the datasheet information for the MBR16150B, a member of the MBR1620B D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER family.

Datasheet Summary

Features

  • 0.421(10.69) 0.380(9.65) 0.625(15.88) 0.575(14.60) pin 1 0.110(2.79) 0.090(2.29) 0.040(1.01) 0.020(0.51) 0.190(4.83) 0.172(4.37) 0.055(1.40) 0.045(1.14) 0.055(1.40) 0.045(1.14) 0.364(9.25) 0.325(8.25) 0.110(2.79) 0.090(2.29) 0.025(0.64) 0.012(0.30)) 0.115(2.92) 0.080(2.03).
  • Flame Retardant Epoxy Molding Compound.
  • Metal silicon junction, majority carrier conduction.
  • Low power loss, High efficiency, High current capability.
  • Guardring for overvoltage protection.
  • E.

📥 Download Datasheet

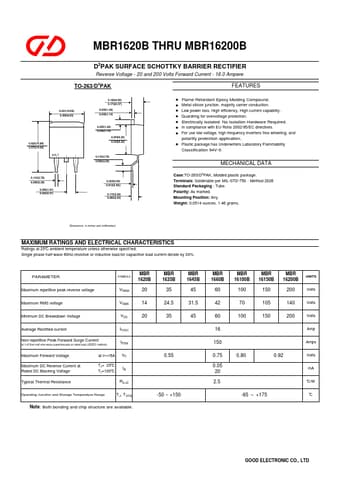

Datasheet preview – MBR16150B

Datasheet Details

Part number MBR16150B
Manufacturer GOOD ELECTRONIC
File Size 77.10 KB
Description D2PAK SURFACE SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet MBR16150B Datasheet
