MBR16100F

16 AMPERS ISOLATION SCHOTTKY BARRIER RECTIFIER

MBR16100F Features

* 0.406(10.3) 0.381(9.7) Ø 0.134(3.4) Ø 0.118(3.0) 0.130(3.3) 0.114(2.9) 0.272(6.9) 0.248(6.3) 0.161(4.1)MAX 0.606(15.4) 0.583(14.8) 0.112(2.85) 0.100(2.55) Pin 1 0.055(1.4) 0.039(1.0) 0.028(0.7) 0.019(0.5) 0.2(5.08) TYP. 0.543(13.8) 0.512(13.0) 0.027(0.67) 0.022(0.57) 0.189(4.8) 0.165(4.2)

MBR16100F Datasheet (77.75 KB)

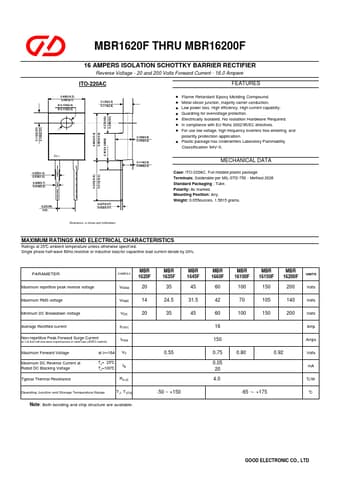

Preview of MBR16100F PDF

Datasheet Details

Part number:

MBR16100F

Manufacturer:

GOOD ELECTRONIC

File Size:

77.75 KB

Description:

16 ampers isolation schottky barrier rectifier.
MBR1620F THRU MBR16200F 16 AMPERS ISOLATION SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 and 200 Volts Forward Current - 16.0 Ampere ITO-220AC F.
