MBR16150F - 16 AMPERS ISOLATION SCHOTTKY BARRIER RECTIFIER

This page provides the datasheet information for the MBR16150F, a member of the MBR1620F 16 AMPERS ISOLATION SCHOTTKY BARRIER RECTIFIER family.

Datasheet Summary

Features

0.406(10.3) 0.381(9.7) Ø 0.134(3.4) Ø 0.118(3.0) 0.130(3.3) 0.114(2.9) 0.272(6.9) 0.248(6.3) 0.161(4.1)MAX 0.606(15.4) 0.583(14.8) 0.112(2.85) 0.100(2.55) Pin 1 0.055(1.4) 0.039(1.0) 0.028(0.7) 0.019(0.5) 0.2(5.08) TYP. 0.543(13.8) 0.512(13.0) 0.027(0.67) 0.022(0.57) 0.189(4.8) 0.165(4.2) 0.114(2.9) 0.098(2.5).
Flame Retardant Epoxy Molding Compound.
Metal silicon junction, majority carrier conduction.
Low power loss, High efficiency, High current capability.
Gu.

Datasheet Details

Part number	MBR16150F
Manufacturer	GOOD ELECTRONIC
File Size	77.75 KB
Description	16 AMPERS ISOLATION SCHOTTKY BARRIER RECTIFIER
Datasheet	MBR16150F Datasheet

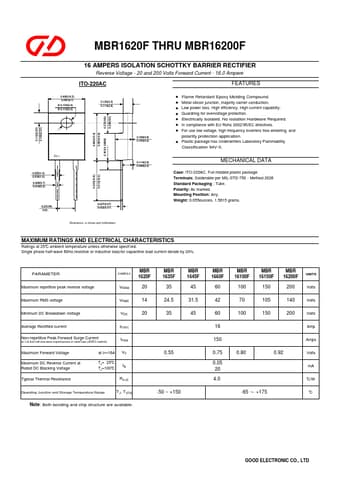

Additional preview pages of the MBR16150F datasheet.

📁 Similar Datasheet

MBR16150FCT - Schottky Barrier Rectifier (Formosa MS)

MBR16150FCT - 16 AMPERE SCHOTTKY BARRIER RECTIFIERS (YS)

MBR16150 - Schottky Barrier Rectifiers (Multicomp)

MBR16150 - Schottky Barrier Rectifier (Fagor)

MBR16150 - Schottky Barrier Rectifier (Taiwan Semiconductor)

MBR16150 - Schottky Barrier Rectifier (GME)

MBR16150 - 16.0AMP. SCHOTTKY BARRIER RECTIFIERS (YFD)

MBR16150CT - Schottky Barrier Rectifier (Inchange Semiconductor)

MBR16150CT - Schottky Barrier Recitifier (HY)

MBR16150CT - SCHOTTKY BARRIER RECTIFIERS (LGE)

Full PDF Text Transcription

Click to expand full text

MBR1620F THRU MBR16200F 16 AMPERS ISOLATION SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 and 200 Volts Forward Current - 16.0 Ampere ITO-220AC FEATURES 0.406(10.3) 0.381(9.7) Ø 0.134(3.4) Ø 0.118(3.0) 0.130(3.3) 0.114(2.9) 0.272(6.9) 0.248(6.3) 0.161(4.1)MAX 0.606(15.4) 0.583(14.8) 0.112(2.85) 0.100(2.55) Pin 1 0.055(1.4) 0.039(1.0) 0.028(0.7) 0.019(0.5) 0.2(5.08) TYP. 0.543(13.8) 0.512(13.0) 0.027(0.67) 0.022(0.57) 0.189(4.8) 0.165(4.2) 0.114(2.9) 0.098(2.5) ◆ Flame Retardant Epoxy Molding Compound. ◆ Metal silicon junction, majority carrier conduction. ◆ Low power loss, High efficiency, High current capability. ◆ Guardring for overvoltage protection. ◆ Electrically Isolated. No Isolation Hardware Required. ◆ In compliance with EU Rohs 2002/95/EC directives.
