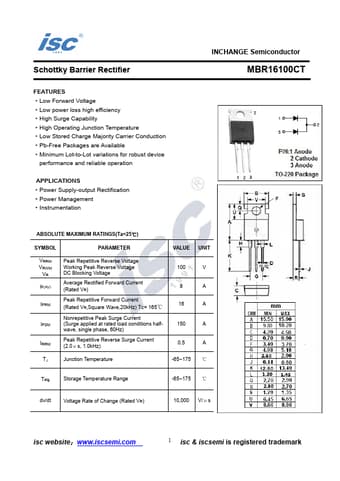

Schottky Barrier Rectifier
FEATURES ·Low Forward Voltage ·Low power loss high efficiency ·High Surge Capability ·High Operating Junction Temperature ·Low Stored Charge Majority Carrier Conduction ·Pb-Free Packages are Available ·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS ·Power Supply-output Rectification ·Power Management ·Instrumentation
INCHANGE Semiconductor
MBR16100CT
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE UNIT
VRRM VRWM
VR IF(AV)
IFRM
IFSM
IRRM
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
Average Rectified Forward Current (Rated VR)
Peak Repetitive Forward Current
(Rated VR,Square Wave,20kHz) TC= 165℃
Nonrepetitive Peak Surge Current (Surge applied at rated load conditions
