LQW15CNR27K1ZD Datasheet - Murata Electronics

LQW15CNR27K1ZD Inductor

LQW15CNR27K1Z# “#” indicates a package specification code. < List of part num bers with package codes > LQW15CNR27K1ZD , LQW15CNR27K1ZB Shape L size W size T size Size code in inch (mm) 1.0 ±0.1mm 0.6 ±0.05mm 0.5 ±0.1mm 0402 (1005) No te s In operating temperature exceeding +85℃, derating of current is necessary for LQW15C series. Please apply the derating curve shown in chart according to the operating temperature. Please confirm the below "Notice (Rating)". Re fe re n ce s Packaging cod.

LQW15CNR27K1ZD Datasheet (77.55 KB)

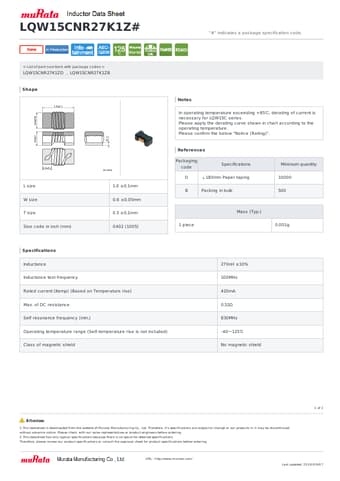

LQW15CNR27K1ZD Datasheet Preview — Preview of LQW15CNR27K1ZD PDF

Datasheet Details

Part number:

LQW15CNR27K1ZD

Manufacturer:

Murata Electronics

File Size:

77.55 KB

Description:

Inductor.
