LQW15CNR39J1ZD Datasheet - Murata Electronics

LQW15CNR39J1ZD-MurataElectronics.pdf

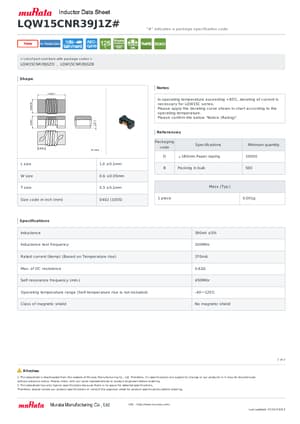

Preview of LQW15CNR39J1ZD PDF
LQW15CNR39J1ZD Datasheet Preview Page 2

Datasheet Details

Part number:

LQW15CNR39J1ZD

Manufacturer:

Murata Electronics

File Size:

78.64 KB

Description:

Inductor.

LQW15CNR39J1ZD, Inductor

LQW15CNR39J1Z# “#” indicates a package specification code.

< List of part num bers with package codes > LQW15CNR39J1ZD , LQW15CNR39J1ZB Shape L size W size T size Size code in inch (mm) 1.0 ±0.1mm 0.6 ±0.05mm 0.5 ±0.1mm 0402 (1005) No te s In operating temperature exceeding +85℃, derating of current is necessary for LQW15C series.

Please apply the derating curve shown in chart according to the operating temperature.

Please confirm the below "Notice (Rating)".

Re fe re n ce s Packaging cod
