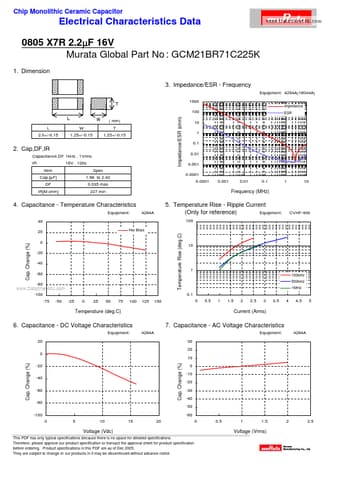

Chip Monolithic Ceramic Capacitor
Electrical Characteristics Data 0805 X7R 2.2μF 16V Murata Global Part No : GCM21BR71C225K
1. Dimension 3. Impedance/ESR - Frequency
Equipment: 4294A(16044A)
T W
W 1.25+/-0.15
1000
Impedance
100 ( mm) T 1.25+/-0.15
ESR
Impedance/ESR (ohm)
L
L 2.0+/-0.15
10 1 0.1 0.01 0.001 0.0001 0.0001
2. Cap,DF,IR
Capacitance,DF 1kHz , 1Vrms IR Item Cap.[μF] DF IR[M ohm] 16V , 120s Spec 1.98 to 2.42 0.035 max 227 min
0.001
0.01
0.1
1
10
Frequency (MHz)
4. Capacitance - Temperature Characteristics
Equipment: 40 4284A
5. Temperature Rise - Ripple Current (Only for reference) Equipment:
100
CVHF-400
Cap. Change (%)
0 -20 -40 -60
Temperature Rise (deg.C)
20
No Bias
10
1
100kHz 500kHz 1MHz
-80 www.DataSheet4U.com -100 -75 -50 -25
0.
