GCM21BR71E225K Datasheet - Murata Manufacturing

GCM21BR71E225K Chip Monolithic Ceramic Capacitor

Chip Monolithic Ceramic Capacitor Electrical Characteristics Data 0805 X7R 2.2μF 25V Murata Global Part No : GCM21BR71E225K 1. Dimension 3. Impedance/ESR - Frequency Equipment: 4294A(16044A) T W W 1.25+/-0.15 1000 Impedance 100 ( mm) T 1.25+/-0.15 ESR Impedance/ESR (ohm) L L 2.0+/-0.15 10 1 0.1 0.01 0.001 0.0001 0.0001 2. Cap,DF,IR Capacitance,DF 1kHz , 1Vrms IR Item Cap.[μF] DF IR[M ohm] 25V , 120s Spec 1.98 to 2.42 0.1 max 227 min 0.001 0.01 0.1 1 10 Frequency (MHz) 4. Capacita.

GCM21BR71E225K_MurataManufacturing.pdf

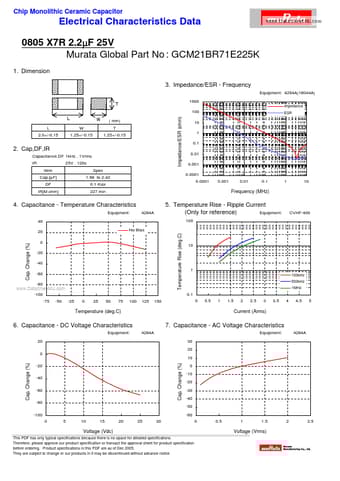

Preview of GCM21BR71E225K PDF

Datasheet Details

Part number:

GCM21BR71E225K

Manufacturer:

Murata Manufacturing

File Size:

89.95 KB

Description:

Chip monolithic ceramic capacitor.
