DLW5ATH112MQ2K, DLW5ATH112MQ2B Datasheet - Murata

DLW5ATH112MQ2K Choke Coils

DLW5ATH112MQ2K Features

* 1. Low profile(h=2.35mm max.) 2. Small size(5.0x3.6mm) 3．Large Current Available（1.5Ato 4A） 4．Operating Temperature Range：-40℃ to +125℃ 5．Reflow and Flow soldering Available Application Automotive Usage : Powertrain/Safety Applications Au to m o ti ve Usage Po we rtra i n /Sa fe ty Packaging In

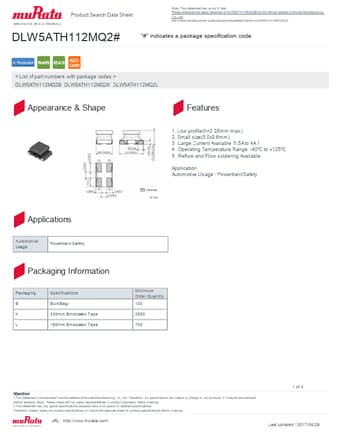

DLW5ATH112MQ2B-Murata.pdf

DLW5ATH112MQ2K Datasheet Preview — This datasheet PDF includes multiple part numbers: DLW5ATH112MQ2K, DLW5ATH112MQ2B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DLW5ATH112MQ2K, DLW5ATH112MQ2B

Manufacturer:

Murata

File Size:

233.95 KB

Description:

Choke coils.

Note:

This datasheet PDF includes multiple part numbers: DLW5ATH112MQ2K, DLW5ATH112MQ2B.
Please refer to the document for exact specifications by model.
