DLW5ATH151MQ2B Wire Wound Chip Common Mode Choke Coil

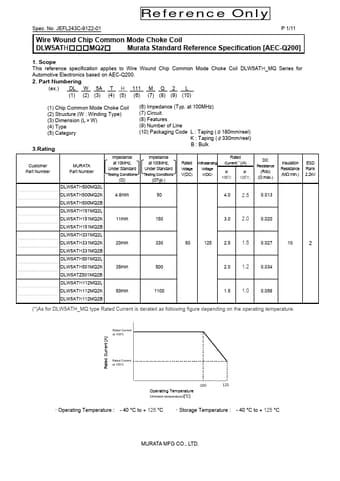

Reference Only Spec. No. JEFL243C-9122-01 P 1/11 Wire Wound Chip Common Mode Choke Coil DLW5ATH MQ2 Murata Standard Reference Specification [AEC-Q200] 1. Scope This reference specification applies to Wire Wound Chip Common Mode Choke Coil DLW5ATH_MQ Series for Automotive Electronics based on AEC-Q200. 2. Part Numbering (ex.) DL W 5A T H 111 M Q 2 L (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (1) Chip Common Mode Choke Coil (2) Structure (W : Winding Type) (3).

DLW5ATH151MQ2B Features

* (9) Number of Line (10) Packaging Code L : Taping (φ180mm/reel) K : Taping (φ330mm/reel) B : Bulk Customer Part Number MURATA Part Number DLW5ATH500MQ2L Impedance at 10MHz, Under Standard Testing Conditions (Ω) Impedance at 100MHz, Under Standard Testing Conditions (ΩTyp.) Rated Voltage V(DC)

DLW5ATH500MQ2L-Murata.pdf

DLW5ATH151MQ2B Datasheet Preview — This datasheet PDF includes multiple part numbers: DLW5ATH151MQ2B, DLW5ATH500MQ2L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DLW5ATH151MQ2B, DLW5ATH500MQ2L

Manufacturer:

Murata

File Size:

419.02 KB

Description:

Wire wound chip common mode choke coil.

Note:

This datasheet PDF includes multiple part numbers: DLW5ATH151MQ2B, DLW5ATH500MQ2L.
Please refer to the document for exact specifications by model.
