DMF3Z5R5H474M3DTA0, DMF3R5R5L334M3DTA0 - High Performance Electrical Double-Layer Capacitors

Murata

The DMF3Z5R5H474M3DTA0 by Murata is a High Performance Electrical Double-Layer Capacitors. Below is the official datasheet preview.

📥 Download Datasheet

DMF3Z5R5H474M3DTA0 High Performance Electrical Double-Layer Capacitors by Murata - Datasheet Preview — Official preview page of the **DMF3Z5R5H474M3DTA0** High Performance Electrical Double-Layer Capacitors datasheet (Murata).

Datasheet Details

Part number	DMF3Z5R5H474M3DTA0, DMF3R5R5L334M3DTA0
Manufacturer	Murata
File Size	583.30 KB
Description	High Performance Electrical Double-Layer Capacitors
Datasheet	DMF3R5R5L334M3DTA0_Murata.pdf
Note	This datasheet PDF includes multiple part numbers: DMF3Z5R5H474M3DTA0, DMF3R5R5L334M3DTA0. Please refer to the document for exact specifications by model.

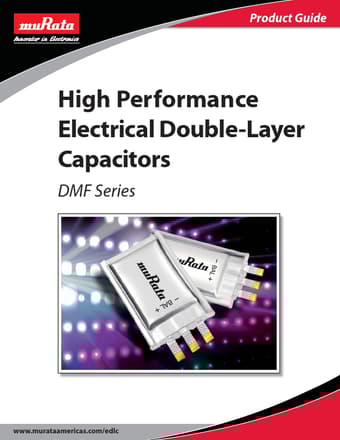

Additional preview pages of the DMF3Z5R5H474M3DTA0 datasheet.

DMF3Z5R5H474M3DTA0 Product details

Description

DMF 3R 5R5 ➀ 1. Series DMF Code 3R 3Z High Peak Power Type (smaller size) L 21.0±0.5 21.0±0.5 W 14.0±0.5 14.0±0.5 T 2.5±0.2 3.2±0.2 2. External Dimension (L×W×T) (mm) L ➃ 334 ➄ http://www.DataSheet4U.net/ M ➅ Code M 3D ➆ T ➇ A0 ➈ Tolerance ±20% Terminal Specification 3 Terminals (+ / Balance) ➁ ➂ 6. Capacitance Tolerance 7. External Terminal Code 3D 3. Rated Voltage Expressed by three-digit alphanumerics Code 5R5 4. ESR Code H L 5. Nominal Capacitance Code 334 474 Nominal Ca

Features

 High power output and high energy: 5.5V.
 Compact and slim: 21.0mm x 14.0mm x 2.5mm.
 Wide operation temperature range from -30°C to +70°C.
 Low ESR: 40mΩ.
60mΩ.
Stable ESR at lower temperatures Benefits.
 Leveling the high peak load up to hundreds of milli-seconds.
Extend battery run time and cycle life by stable combination with EDLC.
Enable the use of lower power battery or reduction of the number of series connections.
