ENV-05F-03 Datasheet - Murata

ENV-05F-03 - Operation Manual

+Supply (input) Ground (common) Sensor Output (output) (1) (2) (3) 3/9 No.

APENVF01E 5.

Installation 1) Install the sensor with the bottom face as reference.

2) Install the sensor vertically with respect to the rotating surface.

(90 ± 5 deg) 3) Install the sensor in a location free from vibratio

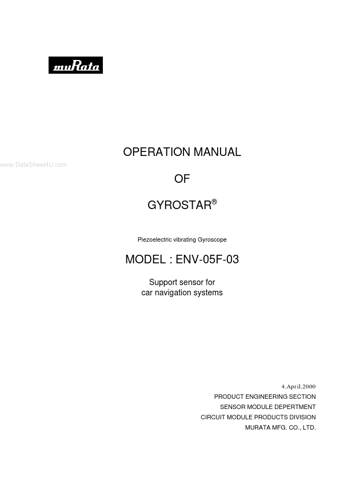

OPERATION MANUAL www.DataSheet4U.com OF GYROSTAR® Piezoelectric vibrating Gyroscope MODEL : ENV-05F-03 Support sensor for car navigation systems 4.April.2000 PRODUCT ENGINEERING SECTION SENSOR MODULE DEPERTMENT CIRCUIT MODULE PRODUCTS DIVISION MURATA MFG.

CO., LTD.

Introduction This angular velocity sensor employs the principle that a Coriolis force results if an angular velocity is applied to a vibrating object.

Murata's unique ceramic bimorph vibrating unit is used as the sensor element un

ENV-05F-03 Features

* www.DataSheet4U.com - On - Board mount type for easy PCB installation - Low height of 23mm capable of being installed in a one DIN size box 2. Applications - Dead reckoning function in car navigation systems - Satellite antenna positioning for moving object - Movement memory for accident recorders

ENV-05F-03_Murata.pdf

Preview of ENV-05F-03 PDF
ENV-05F-03 Datasheet Preview Page 2 ENV-05F-03 Datasheet Preview Page 3

Datasheet Details

Part number:

ENV-05F-03

Manufacturer:

Murata

File Size:

100.31 KB

Description:

Operation manual.
