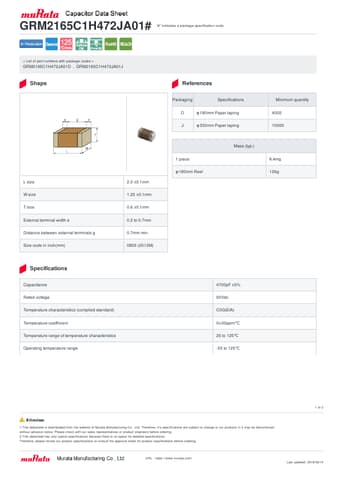

GRM2165C1H472JA01D Datasheet - Murata

GRM2165C1H472JA01D Capacitor

GRM2165C1H472JA01# “#” indicates a package specification code. < List of part numbers with package codes > GRM2165C1H472JA01D , GRM2165C1H472JA01J Shape L size W size T size External terminal width e Distance between external terminals g Size code in inch(mm) 2.0 ±0.1mm 1.25 ±0.1mm 0.6 ±0.1mm 0.2 to 0.7mm 0.7mm min. 0805 (2012M) Specifications Capacitance Rated voltage Temperature characteristics (complied standard) Temperature coefficient Temperature range of temperature characteristics Ope.

GRM2165C1H472JA01D-Murata.pdf
