NKE1205SC, NKE - Isolated Sub-Miniature 1W Single Output DC/DC Converters

Murata

📥 Download Datasheet

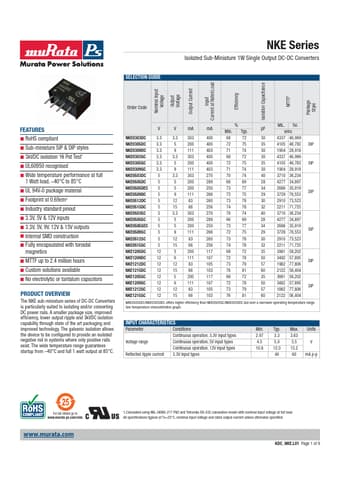

NKE1205SC Datasheet Preview — This datasheet PDF includes multiple part numbers: NKE1205SC, NKE. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NKE1205SC, NKE
Manufacturer	Murata
File Size	256.80 KB
Description	Isolated Sub-Miniature 1W Single Output DC/DC Converters
Datasheet	NKE-0303DC.pdf
Note	This datasheet PDF includes multiple part numbers: NKE1205SC, NKE. Please refer to the document for exact specifications by model.

NKE1205SC Product details

Features

RoHS compliant.
Sub-miniature SIP & DIP styles.
3kVDC isolation ‘Hi Pot Test’.
UL60950 recognised.
Wide temperature performance at full 1 Watt load,.
40°C to 85°C.
UL 94V-0 package material.
Footprint at 0.69cm2.
Industry standard pinout.
3.3V, 5V & 12V inputs.
3.3V, 5V, 9V, 12V & 15V outputs.
Internal SMD construction.
Fully encapsulated with toroidal magnetics.
MTTF up.
