NKE110A Datasheet - nELL

NKE110A - 110A Standard Recovery Diodes

(APPLICATIONS) These modules are intended for general purpose high voltage applications such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger.

All dimensions in millimeters MECHANICAL DESCRIPTION The new generation o

NKE110A Features

* High voltage 3000 VRMS isolating voltage lndustrial standard package UL approved file E320098 Glass passivated chips Low thermal resistance Designed and qualified for industrial level Compliant to RoHs BENEFITS Excellent thermal performances obtained by the usage of exposed direct bonded copper subs

NKE110A-nELL.pdf

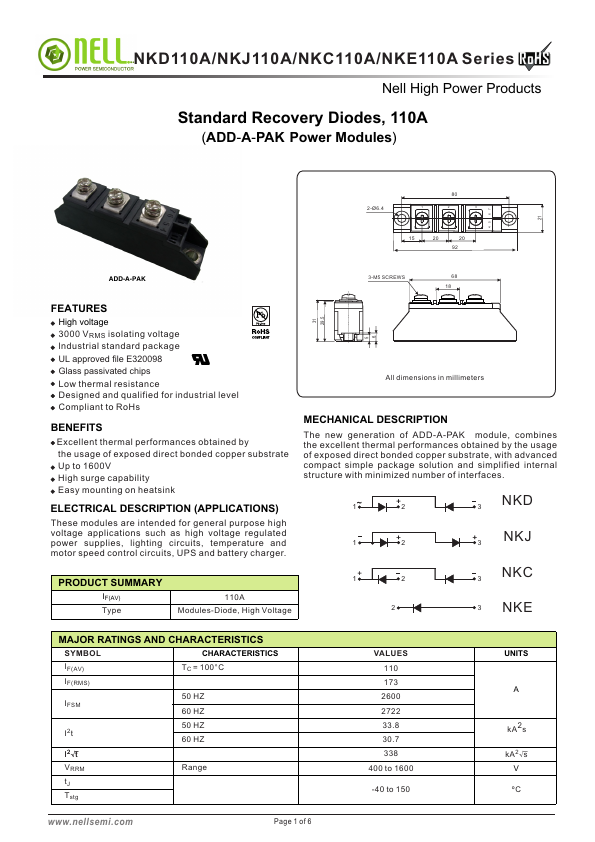

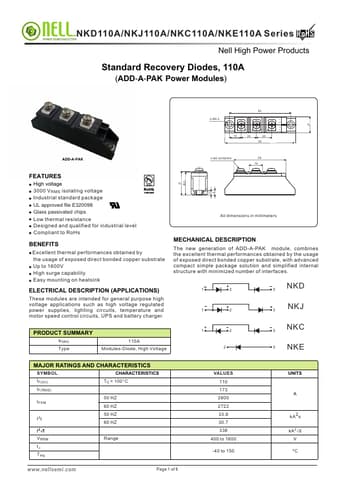

Preview of NKE110A PDF

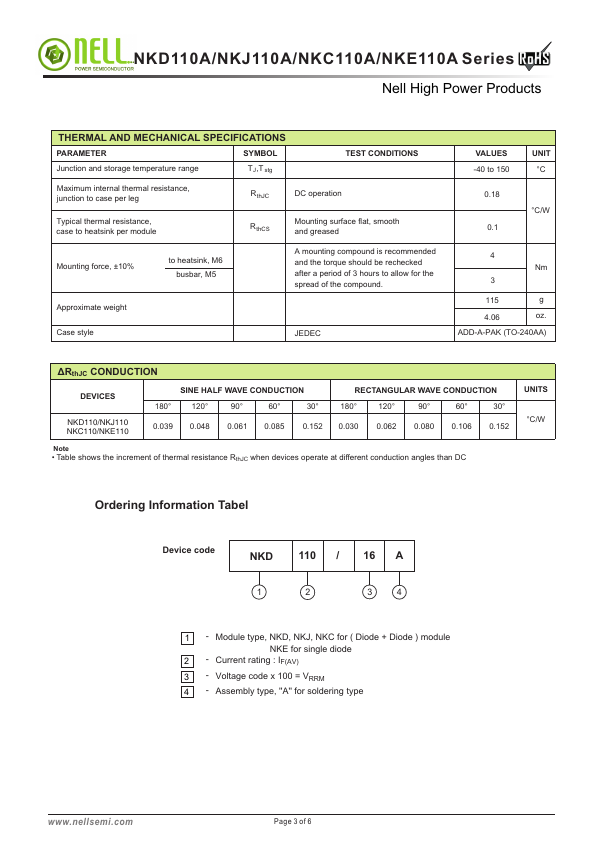

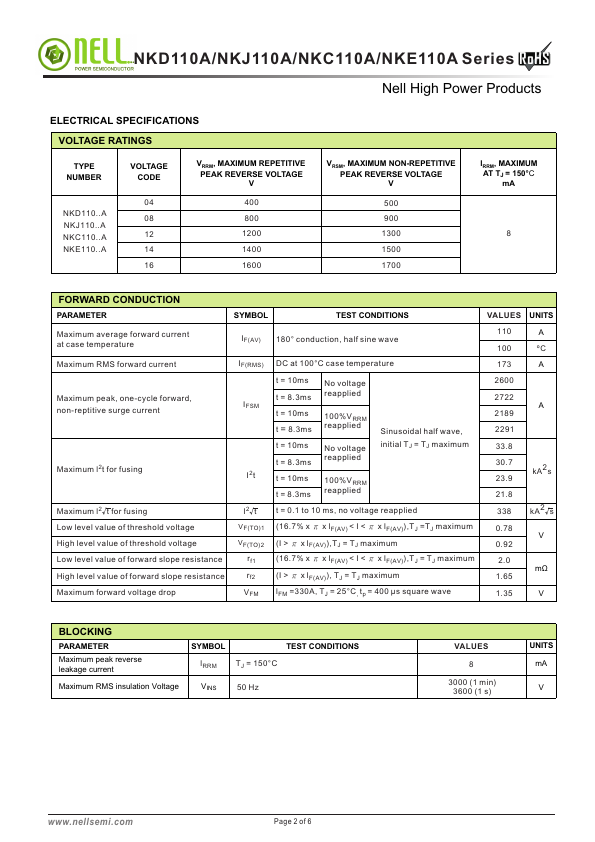

NKE110A Datasheet Preview Page 2 NKE110A Datasheet Preview Page 3

Datasheet Details

Part number:

NKE110A

Manufacturer:

nELL

File Size:

757.85 KB

Description:

110a standard recovery diodes.
