NMA0505SC

Isolated 1W Dual Output DC/DC Converters

NMA0505SC Features

*  RoHS compliant

*  Efficiency up to 80%

*  Power density up to 0.85W/cm3

*  Wide temperature performance at full 1 Watt load,

* 40°C to 85°C

*  Dual output from a single input rail

*  UL 94V-0 package material

*  No heatsink required

NMA0505SC General Description

The NMA series of industrial temperature range DC/DC converters are the standard building blocks for on-board distributed power systems. They are ideally suited for providing dual rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. All of .

NMA0505SC Datasheet (250.49 KB)

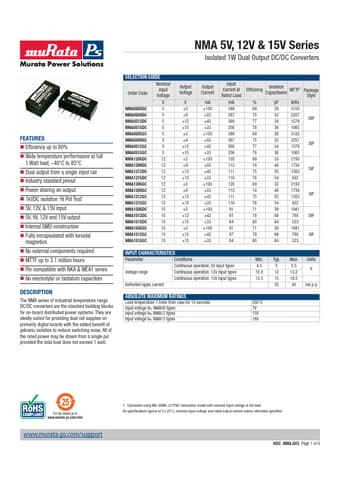

Preview of NMA0505SC PDF

Datasheet Details

Part number:

NMA0505SC

Manufacturer:

Murata

File Size:

250.49 KB

Description:

Isolated 1w dual output dc/dc converters.
www.murata-ps.com NMA 5V, 12V & 15V Series Isolated 1W Dual Output DC/DC Converters SELECTION GUIDE Order Code NMA0505DC NMA0509DC NMA0512DC NMA0515D.
