NMA0509DC, NMA0505DC Datasheet - Murata

NMA0509DC Isolated 1W Dual Output DC/DC Converters

The NMA series of industrial temperature range DC/DC converters are the standard building blocks for on-board distributed power systems. They are ideally suited for providing dual rail supplies on primarily digital boards with the added benefit of galvanic isolation to reduce switching noise. All of .
www.murata-ps.com NMA 5V, 12V & 15V Series Isolated 1W Dual Output DC/DC Converters SELECTION GUIDE Order Code NMA0505DC NMA0509DC NMA0512DC NMA0515DC NMA0505SC NMA0509SC NMA0512SC NMA0515SC NMA1205DC NMA1209DC NMA1212DC NMA1215DC NMA1205SC NMA1209SC NMA1212SC NMA1215SC NMA1505DC NMA1512DC NMA1515DC NMA1505SC NMA1512SC NMA1515SC Nominal Input Voltage V 5 5 5 5 5 5 5 5 12 12 12 12 12 12 12 12 15 15 15 15 15 15 Output Voltage V ±5 ±9 ±12 ±15 ±5 ±9 ±12 ±15 ±5 ±9 ±12 ±15 ±5 ±9 ±12 ±15 ±5 ±12 ±15 .

NMA0509DC Features

*  RoHS compliant

*  Efficiency up to 80%

*  Power density up to 0.85W/cm3

*  Wide temperature performance at full 1 Watt load,

* 40°C to 85°C

*  Dual output from a single input rail

*  UL 94V-0 package material

*  No heatsink required

NMA0505DC-Murata.pdf

This datasheet PDF includes multiple part numbers: NMA0509DC, NMA0505DC. Please refer to the document for exact specifications by model.

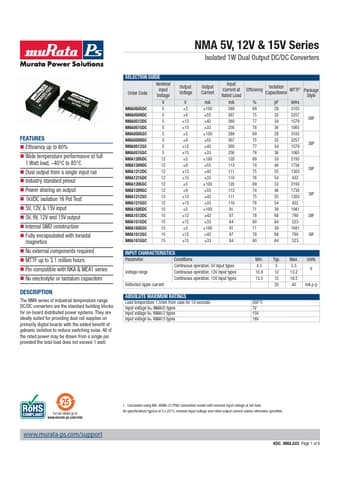

NMA0509DC Datasheet Preview Page 2 NMA0509DC Datasheet Preview Page 3

Datasheet Details

Part number:

NMA0509DC, NMA0505DC

Manufacturer:

Murata

File Size:

250.49 KB

Description:

Isolated 1w dual output dc/dc converters.

Note:

This datasheet PDF includes multiple part numbers: NMA0509DC, NMA0505DC.
Please refer to the document for exact specifications by model.
