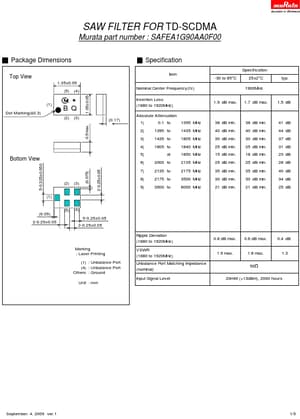

SAW FILTER FOR TD-SCDMA
Murata part number : SAFEA1G90AA0F00
Package Dimensions
Top View
1.35±0.05 (5) (4)
(1) Dot Marking(0.3)
BQ
(2) (3)
(0.17)
0.5max. 1.05±0.05
Bottom View
(0.075) 2-0.25±0.05
5-0.325±0.050
(2) (3)
(1)
(0.05) 2-0.25±0.05
(5) (4) 5-0.25±0.05
2-0.25±0.05
Marking : Laser Printing
(1) : Unbalance Port (4) : Unbalance Port Others : Ground
Unit : mm
Specification
Item
Nominal Center Frequency(fc)
Insertion Loss (1880 to 1920MHz)
Absolute Attenuation 1) 0.1 to 1395 MHz 2) 1395 to 1435 MHz 3) 1435 to 1805 MHz 4) 1805 to 1840 MHz 5) at 1850 MHz 6) 2000 to 2135 MHz 7) 2135 to 2175 MHz 8) 2175 to 3500 MHz 9) 3500 to 6000 MHz
Spec if ic ation
-30 to 85°C
25±2°C
1900MHz
typ.
1.9 dB max. 1.7 dB max. 1.5 dB
38 dB min. 40 dB min. 30 dB min. 25 dB min. 15 dB min.
SAFEA1G90AA0F00 Datasheet
