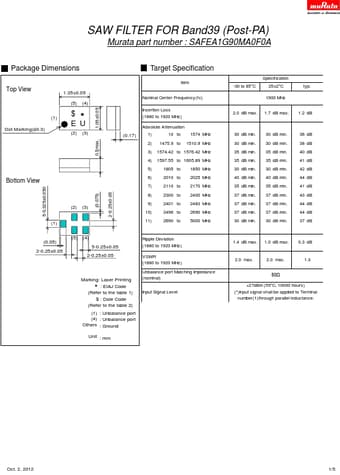

SAW FILTER FOR Band39 (Post-PA)
Murata part number : SAFEA1G90MA0F0A
Package Dimensions
Target Specification
Top View
1.35±0.05
(5) (4)
(1) Dot Marking(0.3)
$ EU
(2) (3)
5-0.325±0.050
Bottom View
(2) (3) (1)
(0.075) 2-0.25±0.05
0.5max. 1.05±0.05
Item
Nominal Center Frequency(fc)
Insertion Loss (1880 to 1920 MHz)
(0.17)
Absolute Attenuation 1) 10 to 1574 MHz 2) 1475.9 to 1510.9 MHz 3) 1574.42 to 1576.42 MHz 4) 1597.55 to 1605.89 MHz 5) 1805 to 1850 MHz 6) 2010 to 2025 MHz 7) 2110 to 2170 MHz 8) 2300 to 2400 MHz 9) 2401 to 2483 MHz
10) 2496 to 2690 MHz 11) 2690 to 5000 MHz
(0.05) 2-0.25±0.05
(5) (4) 5-0.25±0.05
2-0.25±0.
SAFEA1G90MA0F0A Datasheet
