SAWFD1G90CB0F0A SAW FILTER

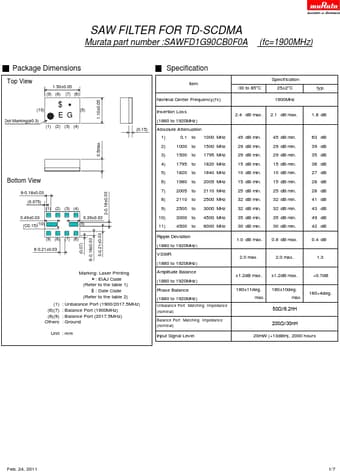

SAW FILTER FOR TD-SCDMA Murata part number :SAWFD1G90CB0F0A (fc=1900MHz) Package Dimensions Top View 1.50±0.05 (9) (8) (7) (6) (10) Dot Marking(0.3) (1) $ (5) EG (2) (3) (4) 1.10±0.05 (0.15) 0.5max. 2-0.18±0.03 Bottom View 8-0.18±0.03 (0.075) (1) (2) (3) (4) 0.49±0.03 (C0.15)(10) 0.39±0.03 (5) (9) (8) (7) (6) 6-0.21±0.03 (0.07) 8-0.18±0.03 5-0.21±0.03 Marking: Laser Printing ＊: EIAJ Code (Refer to the table 1) $ : Date Code (Refer to the table 2) (1) : Unbalance Port (1900/2017.
