AXK740145 (AXK7/8) Narrow Pitch Connectors

NAIS

Description

www.DataSheet4U.com AXK(7/8) NARROW-PITCH CONNECTORS FOR PC BOARDS 2.High impact-resistant construction.1) Adoption of bellows-type contacts struct.

📥 Download Datasheet

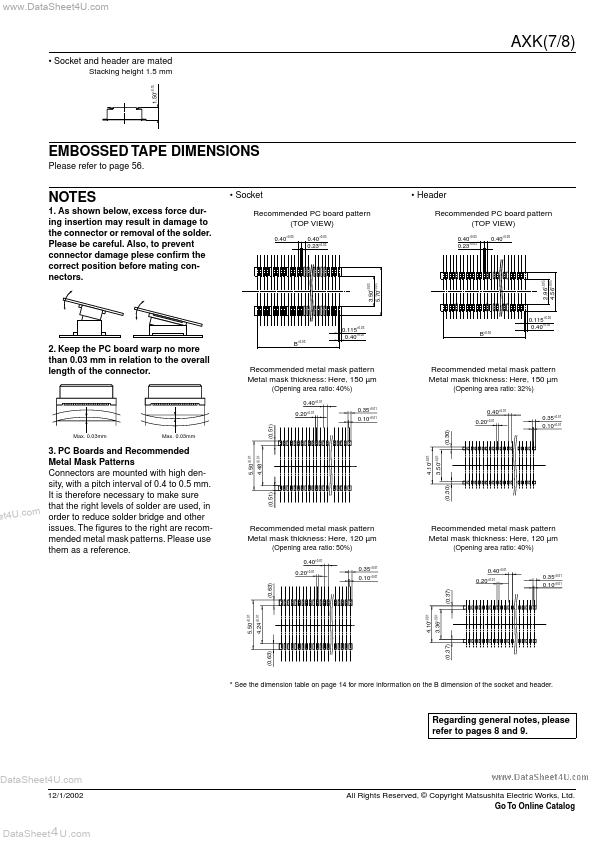

AXK740145 Datasheet Preview — Preview of AXK740145 PDF

Datasheet Specifications

Part number: AXK740145
Manufacturer: NAIS
File Size: 697.31 KB
Datasheet: AXK740145_NAIS.pdf
Description: (AXK7/8) Narrow Pitch Connectors

Features

* 1. A 0.4 mm pitch and stacking height of 1.5 mm allow for extra compactness and helps design lighter, thinner, shorter, and smaller devices. A high level of shock resistance is ensured by dispersing impact over the four locations where the socket indentaDataSheet4U. com tions and header protrusions

Applications

* Cellular phones
* DVC
* Compact portable devices DataSh ee Connector bottom: Create any thru-hole pattern wiring. PRODUCT TYPES Stacking height No. of contacts 20 24 26 30 34 40 50 60 70 80 100 Part No. Socket AXK720145∗ AXK724145∗ AXK726145∗ AXK730145∗ AXK734145∗ AXK74
